KPFM & EFM Sample
Sample with Al and Au line arrays for KPFM and EFM tests
Order
Request an official quote (RFQ)
Order Code / Price*
Quantity
KPFM-EFM-Sample
1 x 580.00 USD = 580.00
USD
Mounted on 15mm round metal plate
Add to Basket
KPFM-EFM-Sample-UM
1 x 580.00 USD = 580.00
USD
Unmounted (chip only, no plate, no wires)
Add to Basket
* Does not include VAT or customs duties.
Give us your feedback
Did we miss any relevant information of this product?
Tell us what we missed
Did you find this or a comparable product for a better price?Tell us about a better price
Product Info
Sample for KPFM and EFM tests featuring:

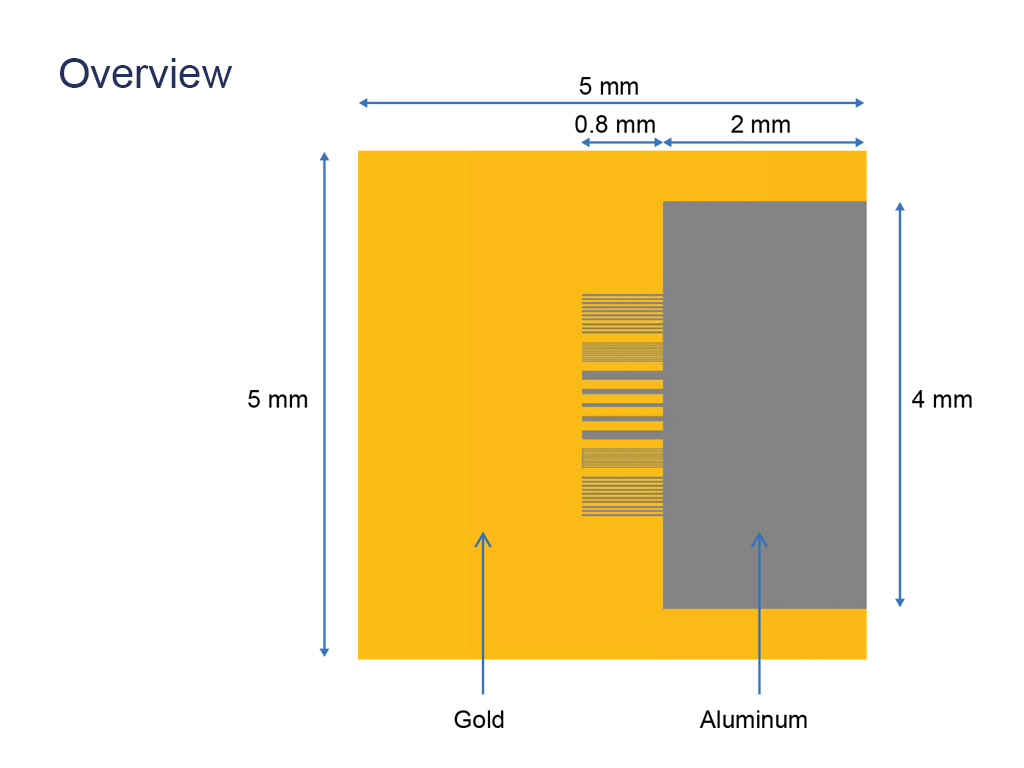

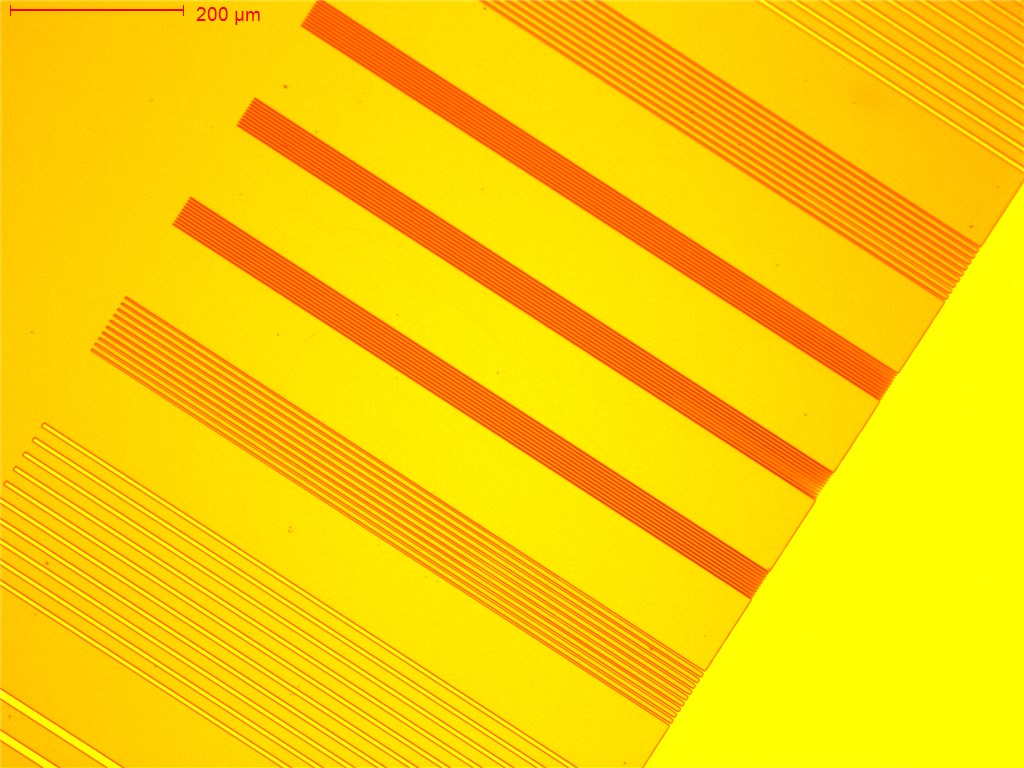

- arrays with alternating Al and Au lines deposited on an oxide covered silicon substrate

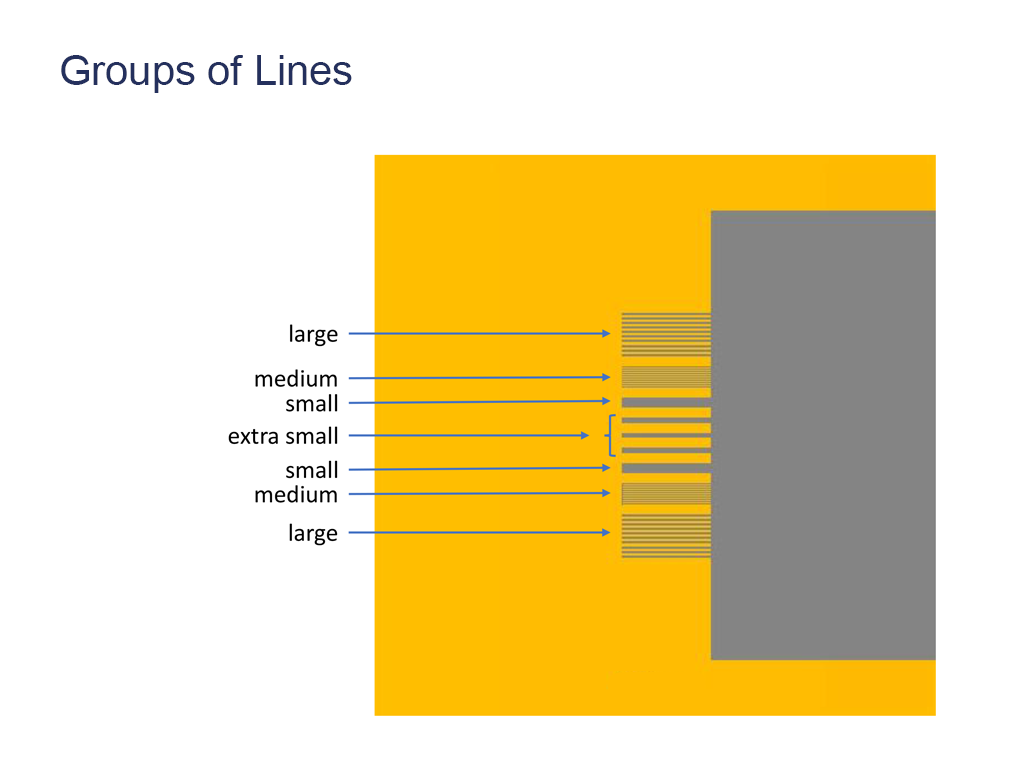

- line array pitches of 8, 20 and 40 micrometers

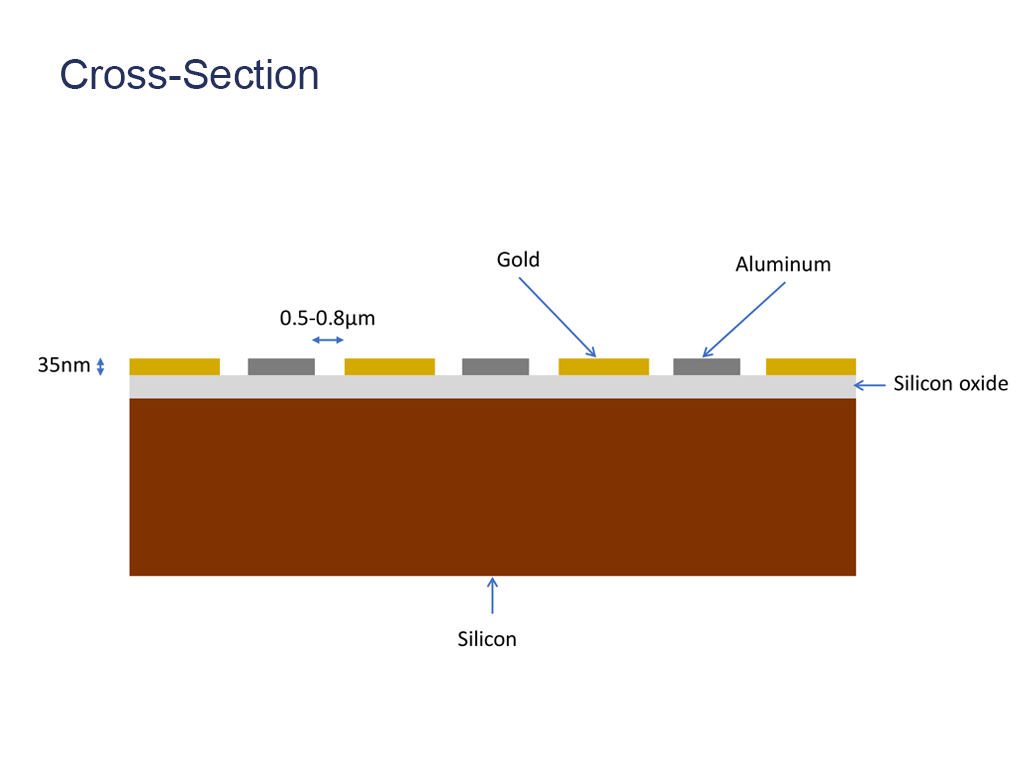

- line height of approx. 35 nanometers

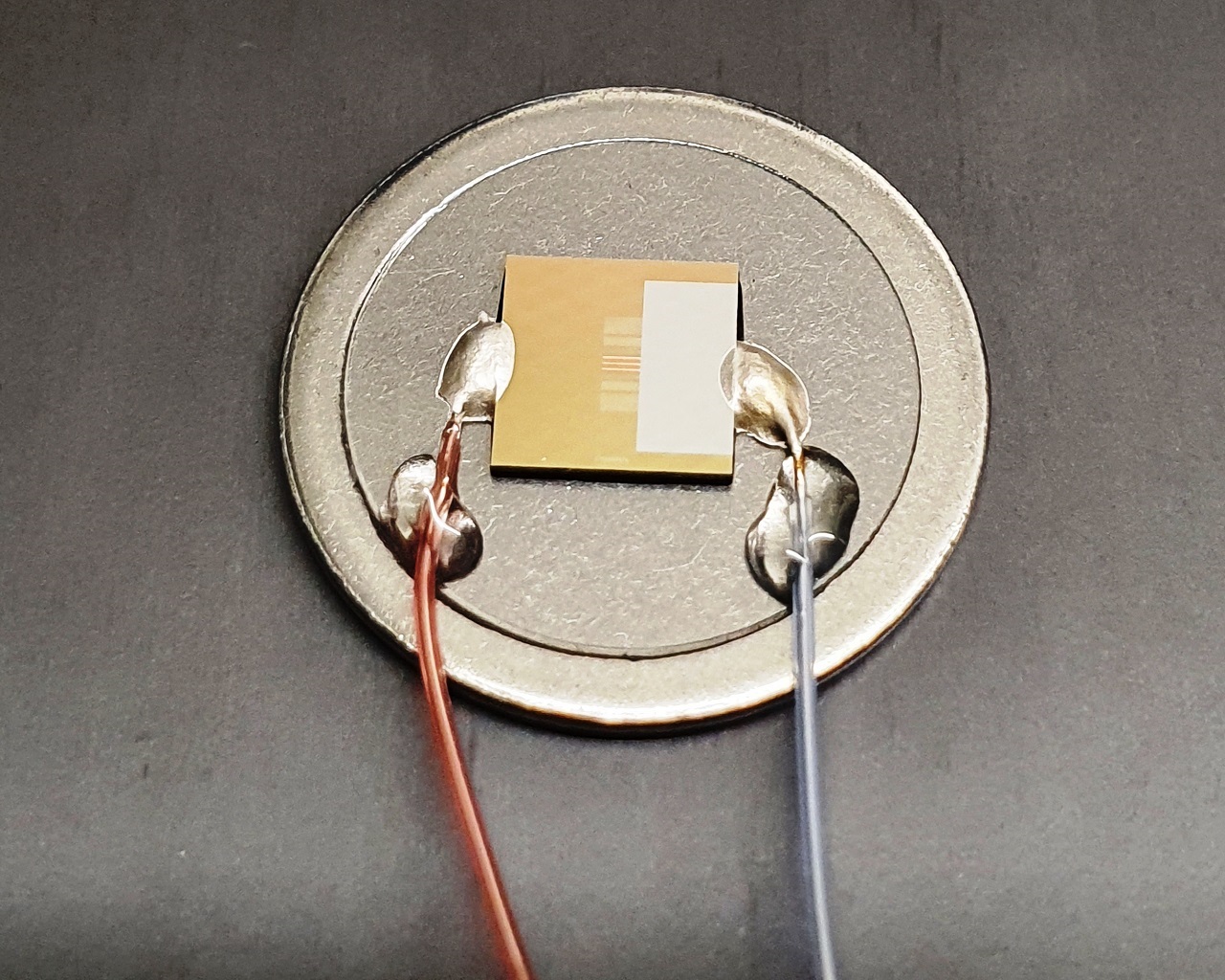

- chip mounted on a 15 millimeter glass disc - metal disc stack
- thin copper wires connected to the Al and Au contact pads
Click here for a pdf file with KPFM & EFM Sample schematics.
